JF Engineering has been manufacturing Eye Bolt since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.



An eye bolt is a bolt with a loop at one end. They are used to firmly attach a securing eye to a structure, so that ropes or cables may then be tied to it.



Eye bolts & Eye lags are bolts or screws with a circular ring on the head.Eye bolts are commonly used to attach cables to objects.There are types of eye bolts like wire eye bolts,forged eye bolts,forged machinery eye bolts,forged eye shoulder bolts,wire eye lag bolts,screw eyes



We manufacture these eye bolts for hot forged materials in stainless steel,high temperature alloys like inconel,monel,hastelloy,waspalloy,alloy 20,titanium,copper alloy,cupro nickel with superior bright surface finish.



Orders at JF Engg are guaranteed fast delivery of the Eye Bolt in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Eye Bolt are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Eye Bolt in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Eye Bolt immediately against the purchase order.

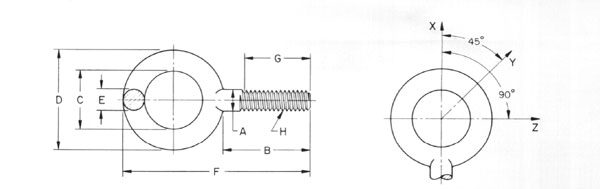

ANSI B18.15 1969 Eye Bolt Dimension







Nominal Size		A	B	C	D	E	F	G	H	Wx	Wy	Wz
		Shank Dia	Shank Length	Eye ID	Nominal Eye OD	Eye Sect Dia	Overall Length	Min Length Full Thread	Thread Size UNC-2A	Safe Working Load, lb at 0 Deg1	Safe Working Load, lb at 45 Deg1	Safe Working Load, lb at 90 Deg1
1/4*	0.25	0.25 0.28	1.00 1.06	0.69 0.81	1.19	0.19 0.25	2.06 2.38	0.75	1/4-20 or .250-20	400	80	60
5/16*	0.31	0.31 0.34	1.12 1.19	0.81 0.94	1.44	0.25 0.31	2.44 2.75	0.81	5/16-18 or .3125-18	800	160	120
3/8*	0.38	0.38 0.41	1.25 1.38	0.94 1.06	1.69	0.31 0.38	2.81 3.19	0.88	3/8-16 or .375-16	1400	280	210
7/16	0.44	0.44 0.47	1.38 1.50	1.00 1.12	1.81	0.34 0.41	3.06 3.44	1.00	7/16-14 or .4375-14	2000	400	300
1/2*	0.50	0.50 0.53	1.50 1.62	1.12 1.25	2.12	0.44 0.50	3.50 3.88	1.12	1/2-13 or .500-13	2600	520	390
9/16	0.56	0.56 0.59	1.62 1.75	1.19 1.31	2.25	0.47 0.53	3.75 4.12	1.25	9/16-12 or .5625-12	3000	600	450
5/8*	0.62	0.62 0.66	1.75 1.88	1.31 1.44	2.56	0.56 0.62	4.19 4.56	1.38	5/8-11 or .625-11	4000	800	600
3/4*	0.75	0.75 0.78	2.00 2.12	1.44 1.56	2.81	0.62 0.69	4.69 5.06	1.62	3/4-10 or .750-10	6000	1200	900
7/8*	0.88	0.88 0.91	2.25 2.38	1.56 1.69	3.19	0.75 0.81	5.31 5.69	1.81	7/8-9 or .875-9	6600	1300	1000
1*	1.00	1.00 1.06	2.50 2.62	1.69 1.81	3.56	0.88 0.94	5.94 6.31	2.06	1-8 or 1.000-8	8000	1600	1200
1-1/8	1.12	1.12 1.19	2.75 2.88	1.94 2.06	4.06	1.00 1.06	6.69 7.06	2.31	1-1/8-7 or 1.125-7	10000	2000	1500
1-1/4*	1.25	1.25 1.34	3.00 3.12	2.12 2.25	4.44	1.09 1.16	7.31 7.69	2.50	1-1/4-7 or 1.250-7	15000	3000	2250
1-1/2*	1.50	1.50 1.59	3.50 3.62	2.44 2.56	5.19	1.31 1.38	8.56 8.94	3.00	1-1/2-6 or 1.500-6	18000	3600	2700
1-3/4	1.75	1.75 1.84	3.75 3.88	2.75 3.00	6.00	1.50 1.62	9.50 10.12	3.19	1-3/4-5 or 1.750-5	22000	4400	3300
2*	2.00	2.00 2.09	4.00 4.25	3.06 3.44	6.88	1.75 1.88	10.56 11.44	3.38	2-4-1/2- or 2.000-4.50	26000	5200	3900
2-1/2*	2.50	2.50 2.62	5.00 5.25	3.81 4.19	8.50	2.19 2.31	13.19 14.06	4.25	2-1/2-4 or 2.500-4	32000	6400	4800

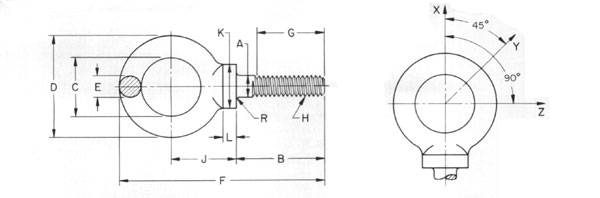

Type 2 Shoulder Pattern Eye Bolts



ANSI B18.15 1969







Nominal Size		A	B	C	D	E	F	G	H	J	K	L	R	Wx	Wy	Wz
		Shank Dia	Shank Length	Eye ID	Nominal Eye OD	Eye Sect Dia	Overall Length	Min Length Full Thread	Thread Size UNC-2A	Centerline Eye to Shoulder	Shoulder Dia	Shoulder Height	Radius Under Shoulder	Safe Working1 Load, lb at
														0°	45°	90°
1/4*	0.25	0.25 0.28	1.00 1.06	0.69 0.81	1.19	0.19 0.25	2.22 2.53	0.75	1/4-20 or .250-20	0.69 0.81	0.50 0.56	0.12 0.19	0.015 0.025	400	100	80
5/16*	0.31	0.31 0.34	1.12 1.19	0.81 0.94	1.44	0.25 0.31	2.66 2.97	0.81	5/16-18 or .3125-18	0.88 1.00	0.56 0.62	0.12 0.19	0.015 0.025	800	200	160
3/8*	0.38	0.38 0.41	1.25 1.38	0.94 1.06	1.69	0.31 0.38	3.09 3.47	0.88	3/8-16 or .375-16	1.06 1.19	0.62 0.69	0.12 0.19	0.015 0.025	1400	350	280
7/16	0.44	0.44 0.47	1.38 1.50	1.00 1.12	1.81	0.34 0.41	3.41 3.78	1.00	7/16-14 or .4375-14	1.19 1.31	0.75 0.81	0.19 0.25	0.015 0.025	2000	500	400
1/2*	0.50	0.50 0.53	1.50 1.62	1.12 1.25	2.12	0.44 0.50	3.81 4.19	1.12	1/2-13 or .500-13	1.31 1.44	0.88 0.94	0.19 0.25	0.015 0.025	2600	650	520
9/16	0.56	0.56 0.59	1.62 1.75	1.19 1.31	2.25	0.47 0.53	4.19 4.56	1.25	9/16-12 or .5625-12	1.50 1.62	0.94 1.00	0.22 0.28	0.020 0.045	3000	750	600
5/8*	0.62	0.62 0.66	1.75 1.88	1.31 1.44	2.56	0.56 0.62	4.56 4.94	1.38	5/8-11 or .625-11	1.59 1.72	1.00 1.06	0.25 0.31	0.020 0.045	4000	1000	800
3/4*	0.75	0.75 0.78	2.00 2.12	1.44 1.56	2.81	0.62 0.69	5.06 5.50	1.62	3/4-10 or .750-10	1.72 1.91	1.12 1.25	0.25 0.31	0.020 0.045	6000	1500	1200
7/8*	0.88	0.88 0.91	2.25 2.38	1.56 1.69	3.19	0.75 0.81	5.75 6.19	1.81	7/8-9 or .875-9	2.03 2.22	1.31 1.44	0.31 0.38	0.040 0.065	6600	1670	1330
1*	1.00	1.00 1.06	2.50 2.62	1.69 1.81	3.56	0.88 0.94	6.44 6.88	2.06	1-8 or 1.000-8	2.22 2.41	1.50 1.62	0.38 0.44	0.060 0.095	8000	2000	1600
1-1/8	1.12	1.12 1.19	2.75 2.88	1.94 2.06	4.06	1.00 1.06	7.31 7.75	2.31	1-1/8-7 or 1.125-7	2.59 2.78	1.69 1.81	0.44 0.50	0.060 0.095	10000	2500	2000
1-1/4*	1.25	1.25 1.34	3.00 3.12	2.12 2.25	4.44	1.09 1.16	8.00 8.44	2.50	1-1/4-7 or 1.250-7	2.84 3.03	1.88 2.00	0.50 0.56	0.060 0.095	15000	3750	3000
1-1/2*	1.50	1.50 1.59	3.50 3.62	2.44 2.56	5.19	1.31 1.38	9.22 9.72	3.00	1-1/2-6 or 1.500-6	3.19 3.44	2.12 2.25	0.50 0.62	0.060 0.095	18000	4500	3600
1-3/4	1.75	1.75 1.84	3.75 3.88	2.75 3.00	6.00	1.50 1.62	10.50 11.12	3.19	1-3/4-5 or 1.750-5	3.88 4.12	2.50 2.62	0.50 0.62	0.060 0.095	22000	5500	4400
2*	2.00	2.00 2.09	4.00 4.12	3.06 3.44	6.88	1.75 1.88	11.53 12.22	3.38	2-4-1/2- or 2.000-4.50	4.25 4.50	2.88 3.00	0.62 0.75	0.060 0.095	26000	6500
