JF Engineering has been manufacturing Flex Lock Nut since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.
Flex Lock Nut is a one piece all-metal prevailing torque type lock nut. These lock nuts have six equally spaced opposing slots aligned with the corners of the nut and cut into a cylindrical collar of slightly smaller diameter at the top of the nut. All-metal lock nuts are more resistant to higher temperatures and chemical exposure than non-metallic lock nuts (such as nylon insert lock nuts) and may be re-used.
The Flex Lock Nut is the classic self-locking nut.We Manufacture Flex Lock Nuts as per DIN 7967 Standard in variety of material grades of Stainless Steel,Carbon Steel,Alloy Steel,Nickel Alloys ,Copper,Brass etc.
Orders at JF Engg are guaranteed fast delivery of the Flex Lock Nut in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Flex Lock Nut are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Flex Lock Nut in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Flex Lock Nut immediately against the purchase order.

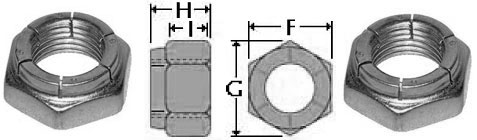

Flex Lock Nut Dimensions
Part Number |
Nominal Size |
F |
G |
H |
I |
|
|---|---|---|---|---|---|---|
Across Flats |
Across Corner |
Height |
Side Height |
|||
Max |
Min |
|||||
21FA-256 |
2-56 |
.251 |
.243 |
.268 |
.155 |
.050 |
21FA-348 |
3-48 |
.251 |
.243 |
.268 |
.155 |
.050 |
21FA-440 |
4-40 |
.251 |
.243 |
.268 |
.155 |
.050 |
21FC-448 |
4-48 |
.251 |
.243 |
.268 |
.155 |
.050 |
21FA-540 |
5-40 |
.251 |
.243 |
.268 |
.155 |
.052 |
21FC-544 |
5-44 |
.251 |
.243 |
.268 |
.155 |
.052 |
21FA-632 |
6-32 |
.313 |
.305 |
.339 |
.180 |
.075 |
21FC-640 |
6-40 |
.313 |
.305 |
.339 |
.180 |
.075 |
21FA-832 |
8-32 |
.345 |
.336 |
.339 |
.243 |
.105 |
21FC-836 |
8-36 |
.345 |
.336 |
.374 |
.243 |
.105 |
21FA-1024 |
10-24 |
.376 |
.367 |
.374 |
.243 |
.085 |
21FC-1032 |
10-32 |
.376 |
.367 |
.410 |
.243 |
.085 |
21FA-1224 |
12-24 |
.439 |
.430 |
.410 |
.290 |
.122 |
21FC-1228 |
12-28 |
.439 |
.430 |
.482 |
.290 |
.122 |
21FA-420 |
1/4-20 |
.439 |
.430 |
.482 |
.290 |
.122 |
21FC-428 |
1/4-28 |
.439 |
.430 |
.482 |
.320 |
.135 |
21FAF-518 |
5/16-18 |
.502 |
.492 |
.552 |
.353 |
.150 |
21FC-524 |
5/16-24 |
.502 |
.492 |
.552 |
.353 |
.150 |
21FAF-616 |
3/8-16 |
.564 |
.553 |
.622 |
.462 |
.210 |
21FC-624 |
3/8-24 |
.564 |
.553 |
.622 |
.462 |
.210 |
21FAF-714 |
7/16-14 |
.627 |
.616 |
0696 |
.462 |
.210 |
21FC-720 |
7/16-20 |
.627 |
.616 |
.696 |
.462 |
.210 |
21FAF-813 |
1/2-13 |
.752 |
.741 |
.837 |
.602 |
.285 |
21FC-820 |
1/2-20 |
.752 |
.741 |
.837 |
.602 |
.285 |
21FA-912 |
9/16-12 |
.877 |
.865 |
.978 |
.696 |
.385 |
21FC-918 |
9/16-18 |
.877 |
.865 |
.978 |
.696 |
.385 |
21FAF-1011 |
5/8-11 |
.940 |
.928 |
1.051 |
.759 |
.410 |
21FC-1018 |
5/8-18 |
.940 |
.928 |
1.051 |
.759 |
.410 |
21FAF-1210 |
3/4-10 |
1.064 |
1.052 |
1.191 |
.884 |
.505 |
21FC-1216 |
3/4-16 |
1.064 |
1.052 |
1.191 |
.884 |
.505 |
21FAF-1409 |
7/8-9 |
1.252 |
1.239 |
1.403 |
1.009 |
.570 |
21FC1414 |
7/8-14 |
1.252 |
1.239 |
1.403 |
1.009 |
.570 |
21FAF-1608 |
1-8 |
1.440 |
1.427 |
1.615 |
1.134 |
.635 |
21FC-1612 |
1-12 |
1.440 |
1.427 |
1.615 |
1.134 |
.635 |
21FC-1614 |
1-14 |
1.440 |
1.427 |
1.615 |
1.134 |
.635 |
21FC-1812 |
1-1/8-12 |
1.627 |
1.614 |
1.826 |
1.259 |
0710 |
21FC-2012 |
1-1/4-12 |
1.814 |
1.801 |
2.038 |
1.449 |
.795 |
21FC-2212 |
1-3/8-12 |
2.002 |
1.988 |
2.269 |
1.509 |
.815 |
21FC-2412 |
1-1/2-12 |
2.190 |
2.176 |
2.484 |
1.759 |
.970 |
21FC-2812 |
1-3/4-12 |
2.752 |
2.737 |
3.124 |
2.010 |
1.124 |
21FC-3012 |
1-7/8-12 |
2.940 |
2.925 |
3.338 |
2.140 |
1.190 |
21FC-3212 |
2-12 |
3.127 |
3.112 |
3.552 |
2.260 |
1.260 |
