Ogee WasherJF Engineering has been manufacturing Ogee Washers since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.



Ogee refers to the curved shape of this large, cast iron washer which is typically used in dock and wood construction. These oversized washers have a large bearing surface designed to prevent bolt heads and nuts from pulling into the wood.

ASTM A48 covers Gray Iron Castings, including ogee washers.



Ogee washer are Pressed Bell Shaped Washers with a large bearing surface used to protect bolt heads and nuts from pulling into the bolting surface. TorqBolt manufactures Ogee Washers in material like stainless Steel,Galvanized Steel,Carbon Steel,Alloy Steel,Nickel Alloys,Decorative Copper,Brass & Aluminum Alloys with superior finishing.



Orders at JF Engg are guaranteed fast delivery of the Ogee Washers in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The Ogee Washers are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of Ogee Washers in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the Ogee Washers immediately against the purchase order.



We specialize in unique industrial fasteners, so if you have a unique request for a special Ogee Washersr size, please contact us.

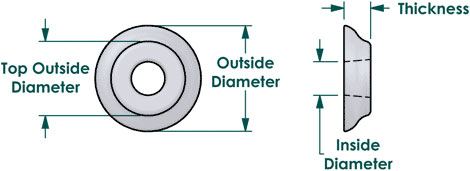

Ogee Washers Dimensions









Bolt Size
A
B
T
Weight (lbs.)
Per 100 Pieces
Part Number
Top Outside Diameter
Bottom Outside Diameter
Thickness
Galvanized
1⁄2
13⁄8
23⁄8
1⁄2
48
18991
5⁄8
15⁄8
23⁄4
5⁄8
62
18992
3⁄4
17⁄8
3
3⁄4
71
18066
7⁄8
2
31⁄2
7⁄8
115
18998
1
21⁄2
4
1
150
18999
11⁄8
21⁄2
41⁄4
11⁄8
249
19206
11⁄4
21⁄2
41⁄2
11⁄4
286
-
11⁄2
3
51⁄2
11⁄2
412
-
Reference ASTM A48 - Standard Specification for Gray Iron Castings







Ready Stock









Surface Coatings









General Queries While Buying Ogee Washers



  • High rejection rate
  • No control on quality and testing
  • Non availability
  • Late deliveries
  • Poor packaging/ Unprofessional Packing
  • Poor after sales service
  • Supply of wrong grades
  • Material inconsistent with ASTM Standards
  • Very hard material for use
  • Poor surface finish
  • No Mill test report
  • Dubious Practices
  • Lack of knowledge
  • Product fails under high pressure
  • High pricing of the goods due to supplier commission





Why Choose JF Engg. While Buying Ogee Washers?



  • High pressure sustainability
  • Impeccable surface finish
  • Product replacement warranty
  • After sales support and service
  • World class buying experience
  • Very quick delivery
  • Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
  • 3rd Party inspection
  • Government and Private Laboratory Testing
  • Test certificate from ISO 17025 Standards Laboratory
  • Same day shipping of the goods
  • Highest stock in the country
  • Stringent Quality Testing and Control



------------------------------------------------------------------------------------------------------------------------------
