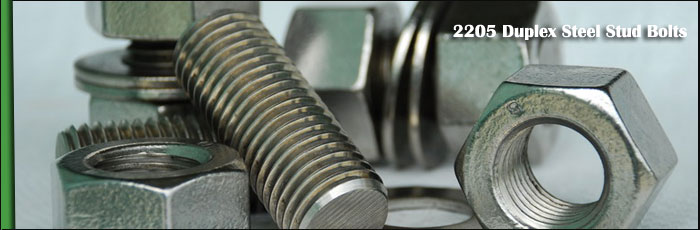

2205 Duplex Steel Stud Bolts
----------------------------------------------------------------------------



You Are Here -> Home ->Exotic Alloy Fasteners->Duplex Stainless Steel Fasteners -> 2205 Duplex Steel Stud Bolts








2205 Duplex Steel Stud Bolts Stock at our Vasai, Mumbai Factory





Largest Distributor Of 2205 Duplex Steel Stud Bolts | Duplex Fasteners | 2205 Duplex Steel Stud Bolts Bulk Ready Stock Available In India | 2205 Duplex Stainless Steel Fasteners



2205 Duplex Steel Fasteners, Stud Bolts, Hex Bolts, U-Bolt, Eye Legs, Sex Bolts, Carriage Bolt, Eye Bolt, Lag Bolt, J- Bolt, Shoulder Bolts, Hanger Bolts, Elevator Bolts, 2205 Duplex Stainless Steel Fasteners, UNS S31803 Super Duplex Bolts



JF Engineering has been manufacturing 2205 Duplex Steel Stud Bolts since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.



JF Engineering is the industry leader in offering what is undoubtedly the most comprehensive Duplex Stainless Steel Fasteners range and stock in all sizes of bolts, nuts, washers, hex socket screws, metal thread screws, self-tapping & wood screws and security products in metric, imperial and in all grades.An extensive portfolio that covers all aspects and requirements of the industry, providing quality products that can be used in confidence



Duplex 2205 is the most widely used duplex (ferritic/austenitic) stainless steel grade.  The Duplex 2205 alloy is a nitrogen-enhanced duplex stainless steel alloy. The nitrogen serves to significantly improve the corrosion resistance of the alloy; especially in the welded condition.The microstructure and composition of the Duplex 2205 alloy provides corrosion resistance to many environments that is superior to Types 316 or 317, and a minimum yield strength that is more than double that of conventional austenitic stainless steels.



Orders at JF Engg are guaranteed fast delivery of the 2205 Duplex Steel Stud Bolts in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The 2205 Duplex Steel Stud Bolts are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of 2205 Duplex Steel Stud Bolts in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the 2205 Duplex Steel Stud Bolts immediately against the purchase order.





Specification





Standard : ASTM / ASME SA 790
Size : M02 to M30
Length : 3 mm To 200 mm
Grade : UNS NO. S 31803, S 32205, S 32550, S 32750
Specification : IS, BS, ASTM
Type : Bolts, nuts, Washers, Anchor Fasteners, Stud Bolts, Eye Bolt, Stud, Threaded Rod, Cotter Pin, Socket Screw, Fine Fasteners & Spares, Foundation Fasteners, etc.








Bolt Type



Hex Head Bolt
Socket Cap Screw
Carriage Bolt
Anchor Bolt
Eye Bolt
Flange Bolt
Elevator Bolt
Lag Bolt
Draw Bolt
Plow Bolt
Stove Bolt
Tap Bolt
Machine Bolt
Hanger Bolt
U Bolt
Grub Screw
Set Screw
Shoulder Bolt
Step Bolt
J Bolt





Grade Designation



Alloy
Common Name
Related Specifications


European
UNS
ASTM/ASME
Alloy 2205
SAF 2205 ®
1.4462
S32205
F60
31803
31803
1.4462
S31803
F51






2205 Duplex Steel Stud Bolts Useful Info



Chemical Composition

Typical compositional ranges for grade 2205 Duplex Steel Stud Bolts



C Mn Si P S Cr Mo Ni N
2205
(S31803)
0.03
max
2.0
max
1.0
max
0.03
max
0.02
max
min: 21.0
max: 23.0
min: 2.5
max: 3.5
min: 4.5
max: 6.5
min: 0.08
max: 0.20
2205
(S32205)
0.03
max
2.0
max
1.0
max
0.03
max
0.02
max
min: 22.0
max: 23.0
min: 3.0
max: 3.5
min: 4.5
max: 6.5
min: 0.14
max: 0.20



Mechanical Properties

Typical mechanical properties for grade 2205 Duplex Steel Stud Bolts



Grade
Tensile Strength
(MPa) min
Yield Strength
0.2% Proof (MPa) min
Elongation
(% in 50mm)
Hardness
Rockwell C (HR C)
UNS-S 31803
650-880
448
25
UNS-S 32205
621
448
25
21 max



Physical Properties

Typical physical properties for annealed grade 2205 Duplex Steel Stud Bolts




Density
lbm/in3
Electrical
Resistivity
mW•in
Thermal
Conductivity
(BTU/hr•ft•°F)
Heat
Capacity
BTU/lbm•°F
Electrical
Resistivity
(in x 10-6)
at 68°F
0.278
27.6
8.7
0.112
33.5
at 212°F
26.1
9.2
0.119
35.4
at 392°F
25.4
9.8
0.127
37.4
at 572°F
24.9
10.4
0.134
39.4







2205 Duplex Steel Stud Bolts Price



->

Duplex Stainless Steel 2205 Stud Bolt, Socket Cap Bolt, Hex Bolt

US $0.01-1.2 / Kilogram



->

Duplex Steel 2205 full threaded Stud bolt
  US $1-2000 / Piece





2205 Duplex Steel Stud Bolts Inventory

















General Queries While Buying 2205 Duplex Steel Stud Bolts



  • High rejection rate
  • No control on quality and testing
  • Non availability
  • Late deliveries
  • Poor packaging/ Unprofessional Packing
  • Poor after sales service
  • Supply of wrong grades
  • Material inconsistent with ASTM Standards
  • Very hard material for use
  • Poor surface finish
  • No Mill test report
  • Dubious Practices
  • Lack of knowledge
  • Product fails under high pressure
  • High pricing of the goods due to supplier commission





Why Choose JF Engg. While Buying 2205 Duplex Steel Stud Bolts ?



  • High pressure sustainability
  • Impeccable surface finish
  • Product replacement warranty
  • After sales support and service
  • World class buying experience
  • Very quick delivery
  • Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
  • 3rd Party inspection
  • Government and Private Laboratory Testing
  • Test certificate from ISO 17025 Standards Laboratory
  • Same day shipping of the goods
  • Highest stock in the country
  • Stringent Quality Testing and Control





------------------------------------------------------------------------------------------------------------------------------



For More Information About 2205 Duplex Steel Stud Bolts please call +91 22 2385 6385 / 2385 638 or send an email to  info@jfengg.com
