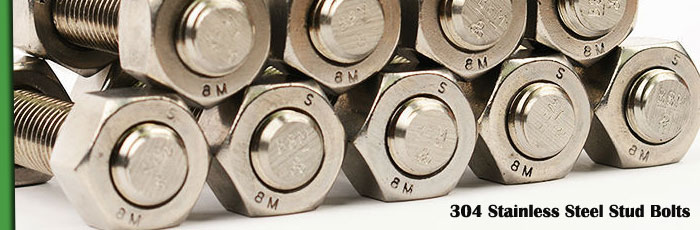

304 Stainless Steel Stud Bolts
----------------------------------------------------------------------------



You Are Here -> Home ->Exotic Alloy Fasteners->Stainless Steel Fasteners -> 304 Stainless Steel Stud Bolts








304 Stanless Steel Stud Bolts Manufacturing at our Vasai, Mumbai Factory





Manufacturer of comprehensive range 304 Stainless Steel Stud Bolts in Excellent Quality with low price





Manufacture one of the widest ranges of 304 Stainless Steel Stud Bolts in India at Best Factory Rate



JF Engineering has been manufacturing 304 Stainless Steel Stud Bolts since 2004 & shipped to more than 60 Countries Like Argentina, Germany, Mexico ,Vietnam, Indonesia, USA , Saudi Arabia, UAE, Egypt , Turkey, Venezuela, Italy, Singapore, Malaysia, Australia, New Zealand, Canada & many more.



JF Engineering is the industry leader in offering what is undoubtedly the most comprehensive Stainless Steel Fasteners range and stock in all sizes of bolts, nuts, washers, hex socket screws, metal thread screws, self-tapping & wood screws and security products in metric, imperial and in all grades.An extensive portfolio that covers all aspects and requirements of the industry, providing quality products that can be used in confidence



The basic alloy. Type 304 (18-8) is an austenitic steel possessing a minimum of 18% chromium and 8% nickel, combined with a maximum of 0.08% carbon. It is a nonmagnetic steel which cannot be hardened by heat treatment, but instead. must be cold worked to obtain higher tensile strengths.The 18% minimum chromium content provides corrosion and oxidation resistance. The alloy's metallurgical characteristics are established primarily by the nickel content (8% mm.), which also extends resistance to corrosion caused by reducing chemicals. Carbon, a necessity of mixed benefit, is held at a level (0.08% max.) that is satisfactory for most service applications.



We manufacture premium quality Bolts from various Stainless Steel Grades with ASTM/ASME/DIN Standards & Specifications.We also produce non standard Bolts fasteners in Stainless Steel grades like AISI 303,AISI 304L,AISI 304L,AISI 309,AISI 309S,AISI 310,AISI 310S,AISI 316Ti,AISI 317L,AISI 347,AISI 409S,AISI 410,AISI 416,AISI 430,AISI 430F,AISI 446C,AISI 904L, Etc. We manufacture different types of Bolts hot forged cold formed Bolts in almost all shapes & sizes.We also provide passivation,quality coating further processing as per client's requirement.



Orders at JF Engg are guaranteed fast delivery of the 304 Stainless Steel Stud Bolts in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods.They are made ready as per the urgent requirements of the customers. The 304 Stainless Steel Stud Bolts are manufactured to sustain very high pressure and product warranty.In 2015 we have stocked more than 188 tons of 304 Stainless Steel Stud Bolts in all sizes, to cater to immediate delivery and urgent needs of the clients. For small requirements we can dispatch the 304 Stainless Steel Stud Bolts immediately against the purchase order.

Specification



Material
Size
Length
Specification
Manufacturer

Stainless Steel



M02 to M33

3 mm
to
200 mm

IS

BS

ASTM

GKW

Unbrako

Kundan

APL

Sundaram Precision

EBY Fastener Etc.




Note:-
Stainless Steel in Grade:

304

304L

316

316L

309

310

317L

321

347

409

410

420

430

446

202 Etc.

Type of Fasteners:

Bolts (Eyebolt)

Stud

Nuts (Nylock, Lock)

Washer (Star, Plain)

Allen Caps

Screws (CSK, Pen Head, Philip, Mushroom, Cheese)

Clamp (U, J, L)

Grab

Rivet (Pop & Hollo) Etc.

In Form of:

Hex

Square

Round

Threading as per Gauge Etc.



Bolt Type



Hex Head Bolt
Socket Cap Screw
Carriage Bolt
Anchor Bolt
Eye Bolt
Flange Bolt
Elevator Bolt
Lag Bolt
Draw Bolt
Plow Bolt
Stove Bolt
Tap Bolt
Machine Bolt
Hanger Bolt
U Bolt
Grub Screw
Set Screw
Shoulder Bolt
Step Bolt
J Bolt





Grade Designation



AISI Grade Equivalent
JIS Equivalent
Stainless Steel Notation
EN/DIN Numerical Equivalent
UNS
designation
EN/DIN Symbolical Equivalent
AISI 304
SUS304
SS 304
EN 1.4301
UNS S30400
X4CrNi18-10
AISI 304L
SUS304L
SS 304L
EN 1..4307
UNS S30403
X2CrNi18-9
AISI 304LN
SUS304 LN
SS 304 LN
EN 1.4311
UNS S30453
X2CrNiN18-10






304 Stainless Steel Stud Bolts Useful Info



Chemical Composition

Typical compositional ranges for grade 304 stainless steels Stud Bolts



Grade
C
Mn
Si
P
S
Cr
Mo
Ni
N
304
min.

max.

-

0.08

-

2.0

-

0.75

-

0.045

-

0.030

18.0

20.0

-
8.0

10.5

-

0.10

304L
min.

max.

-

0.030

-

2.0

-

0.75

-

0.045

-

0.030

18.0

20.0

-
8.0

12.0

-

0.10

304H
min.

max.

0.04

0.10

-

2.0

-

0.75

-0.045
-

0.030

18.0

20.0

-
8.0

10.5

-



Mechanical Properties

Typical mechanical properties for grade 304 stainless steels Stud Bolts



Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max

304

515

205

40

92

201

304L

485

170

40

92

201

304H

515

205

40

92

201

304H also has a requirement for a grain size of ASTM No 7 or coarser.



Physical Properties

Typical physical properties for annealed grade 304 stainless steels Stud Bolts



Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100°C (J/kg.K) Electrical Resistivity

(n.m)

0-100°C 0-315°C 0-538°C at 100°C at 500°C

304/L/H

8000

193

17.2

17.8

18.4

16.2

21.5

500

720







304 Stainless Steel Stud Bolts Price



->

passivated aisi 304 stainless steel stud bolt full thread

US $0.01-0.5 / Piece



->

Aisi 304 Stainless Steel Stud Bolt
  US $0.1-1 / Piece





304 Stainless Steel Stud Bolts Inventory










304 Stainless Steel Stud Bolts Type




SS 304 Bolts Type

304 Stainless Steel Eye Bolt

304 Stainless Steel Eye Bolt With Shoulder

304 Stainless Steel Eye Bolt No Shoulder

304 Stainless Steel Turned Eye Bolts

304 Stainless Steel Screw Thread Eye Bolt

304 Stainless Steel U-bolts

304 Stainless Steel Square U-bolts

304 Stainless Steel Lag Bolts

304 Stainless Steel Bolts and nuts

304 Stainless Steel Serrated Flange Bolts

304 Stainless Steel Hex Head Bolts

304 Stainless Steel All Thread Studs

304 Stainless Steel Button Head Bolts

304 Stainless Steel Heavy Hex Bolts

304 Stainless Steel Square Head Bolts

304 Stainless Steel 12-Point Flange Bolts

304 Stainless Steel Timber Bolts

304 Stainless Steel Jack Bolts

304 Stainless Steel Bent Bolts

304 Stainless Steel Allen Bolt

304 Stainless Steel Long Bolt

304 Stainless Steel Carriage Bolts

304 Stainless Steel Tap Studs

304 Stainless Steel Elevator Bolts

304 Stainless Steel Hanger Bolts

304 Stainless Steel Hex Machine Bolts

304 Stainless Steel Hex Tap Bolts

304 Stainless Steel Metric Bolts

304 Stainless Steel Plow Bolts

304 Stainless Steel Square Head Machine Bolts

304 Stainless Steel Step Bolts

304 Stainless Steel Structural Bolts

304 Stainless Steel Hex Flange Bolt

304 Stainless Steel Tee-Hammer Head Bolt

304 Stainless Steel Security Anti Theft Bolts

304 Stainless Steel Hex Head Bolt With Plain Spring Washer

304 Stainless Steel High Strength Structural Bolts

304 Stainless Steel Hexagon Bolts for Steel Structures

304 Stainless Steel Step Bolts for Steel Structures

304 Stainless Steel Stud bolts

304 Stainless Steel Double end studs





General Queries While Buying 304 Stainless Steel Stud Bolts



  • High rejection rate
  • No control on quality and testing
  • Non availability
  • Late deliveries
  • Poor packaging/ Unprofessional Packing
  • Poor after sales service
  • Supply of wrong grades
  • Material inconsistent with ASTM Standards
  • Very hard material for use
  • Poor surface finish
  • No Mill test report
  • Dubious Practices
  • Lack of knowledge
  • Product fails under high pressure
  • High pricing of the goods due to supplier commission





Why Choose JF Engg. While Buying 304 Stainless Steel Stud Bolts ?



  • High pressure sustainability
  • Impeccable surface finish
  • Product replacement warranty
  • After sales support and service
  • World class buying experience
  • Very quick delivery
  • Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
  • 3rd Party inspection
  • Government and Private Laboratory Testing
  • Test certificate from ISO 17025 Standards Laboratory
  • Same day shipping of the goods
  • Highest stock in the country
  • Stringent Quality Testing and Control





------------------------------------------------------------------------------------------------------------------------------



For More Information About 304 Stainless Steel Stud Bolts please call +91 22 2385 6385 / 2385 638 or send an email to  info@jfengg.com
